- Product Name: Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1
- Gear Ratio: 3:1
- Replaces Comer Code T-269B
Description |
Flail Mower Gearbox - Replacement of Comer Gearbox T-269B (3:1)
|
---|---|
Application |
Various (agricultural) applications, Flail Mowers
|
Consists of |
|

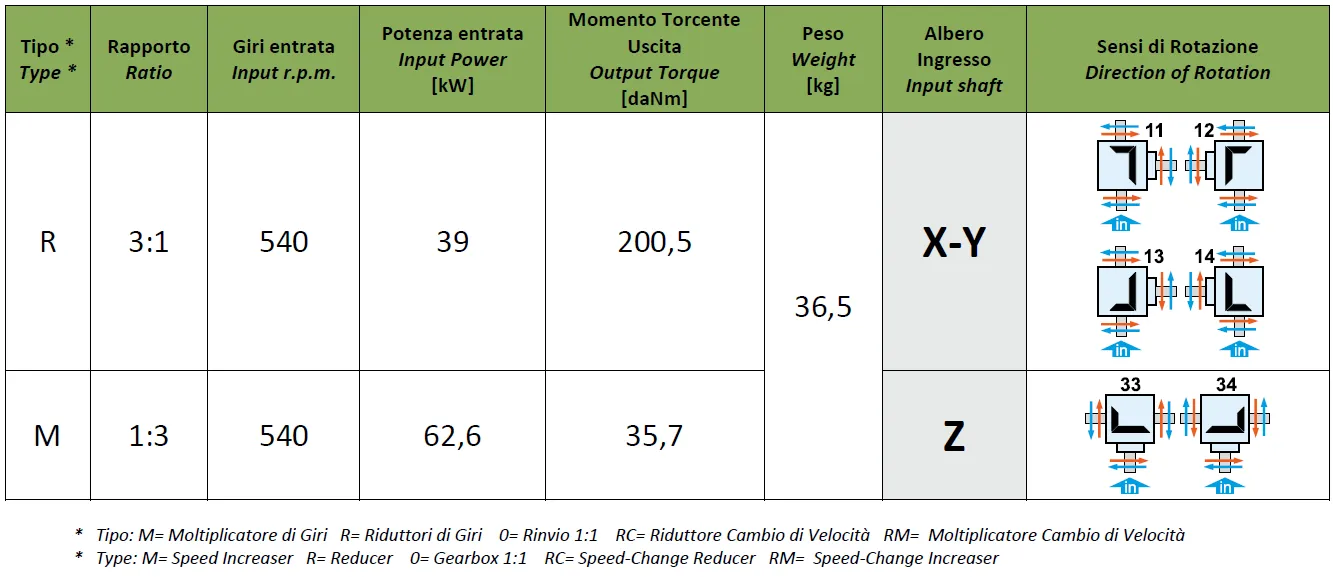

Technical information |
|
Max. input rotation speed |
540?r/min
|
Max. input power |
39 kW
|
Max. output torque |
2005 nm
|
Contains oil |
Non
|
Max. oil capacity |
3.3?l
|
Max. oil change interval |
500?h
|
Oil SAE viscosity grade |
80W-90
|
Housing material |
Cast iron GGG40
|
Poids |
36.5 kg
|
Gear arrangement |
33 - 34
|
Ratio |
3: 1
|

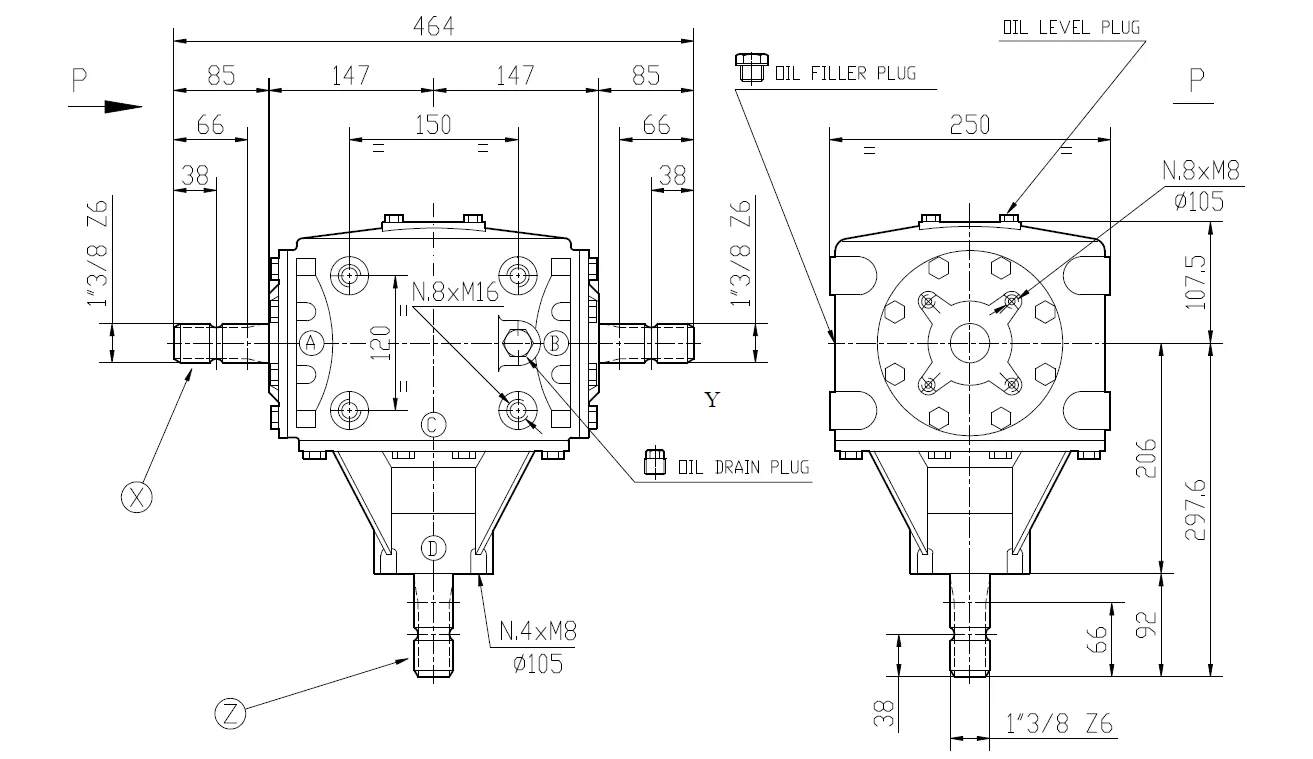

Input shaft |
Z
|
Shaft X |
1 3/8" (6)
|
Shaft Y |
1 3/8" (6)
|
Shaft Z |
1 3/8" (6)
|
What is a Flail Mower Gearbox?
A flail mower gearbox is a critical component of a flail mower that transmits power from the engine to the cutting blades. The gearbox is responsible for ensuring that the blades rotate at the correct speed and torque to cut through tough vegetation effectively.
The Need for a Replacement Gearbox
Over time, the gearbox in a flail mower may wear out or become damaged due to prolonged use or exposure to harsh weather conditions. A damaged gearbox can cause the mower to malfunction, affecting the quality of the cut and efficiency of the machine. In such cases, a replacement gearbox is necessary to maintain optimal functionality of the flail mower.
Features of the Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1
- Durable and long-lasting
- Manufactured with high-quality materials
- Designed to fit seamlessly into the Comer Code T-269B 3:1 Flail Mower
- 3:1 gear ratio, ensuring optimal blade speed and torque
- Precisely engineered for reliable performance and easy installation
Benefits of the Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1
- Improved cutting quality and efficiency
- Lower maintenance costs in the long run
- Ensures the longevity of the flail mower
- Quieter operation compared to other gearboxes
- Reduced vibration, leading to less machine wear and tear
Caractéristiques
Here are the specifications of the Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1:
- Ratio: 3:1
- Input Speed: 540 RPM
- Output Speed: 1,620 RPM
- Weight: 30 lbs
- Dimensions: 10.5 x 10.5 x 9 inches
Conclusion
If you are in need of a reliable and durable replacement gearbox for your Comer Code T-269B 3:1 flail mower, look no further than the Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1. With its exceptional features, benefits, and specifications, this product is exactly what you need to ensure optimal functionality and improved cutting efficiency of your flail mower.
Why Choose Our Agricultural Gearboxes?
RP Techniek BV is the official sales agent of Ever-power Group in the Netherlands. We take pride in offering top-notch agricultural gearboxes, including the Flail Mower Gearbox - Replacement of Comer Code T-269B 3:1.
What sets us apart is our commitment to exceptional quality and outstanding customer service. Our gearboxes are meticulously crafted to ensure durability and reliability, meeting the highest industry standards. We understand the importance of reliable agricultural machinery, and our gearboxes are designed to withstand the toughest conditions.
In addition to our superior products, we also showcase our manufacturing prowess. With state-of-the-art facilities and advanced technology, we have the capability to produce a wide range of agricultural machinery parts and transmission components.
At RP Techniek BV, we offer a diverse range of agricultural machinery parts and transmission components for sale. Whether you need gearboxes, driveshafts, or any other type of agricultural equipment, we have you covered. Our extensive catalog ensures that you can find the right parts for your specific needs.
Choose RP Techniek BV for unparalleled quality, exceptional service, and a comprehensive range of agricultural gearboxes and parts. We are dedicated to enhancing the efficiency and productivity of your agricultural operations.
PTO Shafts for Agricultural Gearboxes
The PTO shafts play a crucial role in the functioning of agricultural gearboxes, particularly when it comes to the replacement of the Comer Code T-269B 3:1 in a Flail Mower Gearbox. These shafts are essential components that transmit power from the tractor to the agricultural gearbox, allowing for the efficient transfer of energy.
At our company, we understand the importance of reliable and durable PTO shafts for agricultural applications. That's why we offer a wide range of high-quality PTO shafts specifically designed for use in agricultural gearboxes. Our shafts are meticulously engineered to withstand the demands of heavy-duty farming operations.
Whether you require a replacement shaft for your current agricultural gearbox or need to purchase a complete assembly, we have you covered. Our PTO shafts are manufactured with precision and are built to provide optimal performance and longevity in the field.
With our extensive inventory, we are confident that we can fulfill your needs. Contact us today to explore our selection of PTO shafts for agricultural gearboxes and find the perfect solution for your machinery.
