Rotary Tiller Gearbox

Rotary Tiller Cultivator Gearbox for Agricultural

EP20100.131.00

rotary Tiller Cultivator Gearbox

ITEM EP20100.131.00 Rotary Tiller Gearbox
Ratio 1.31:1
Teeth 16/21
Module  7.0
Power(HP) 100
Rated Input 600rpm
Input/Output Description 8-φ 48x φ 42×8
Weight(N.W) 58KG

EP-9.311-JCG

EP-9.311-JCG Rotary Tiller Cultivator Gearbox for Agricultural

ITEM EP-9.311-JCG Rotary Tiller Gearbox
Ratio 1:3
Teeth 36/12
Module  4.35
Power(HP) 50
Rated Input 540rpm
Input/Output Description 1 3/8 Z6 Optic axis
Weight(N.W) 21KG

EP-9.310

EP-9.310 Rotary Tiller Cultivator Gearbox for Agricultural

ITEM EP-9.310 Rotary Tiller Gearbox
Ratio 1:3
Teeth 12/36
Module  3.45
Power(HP) 30
Rated Input 540rpm
Input/Output Description 1 3/8 Z6 Optic axis
Weight(N.W) 18KG

EP-9.311

EP-9.311 Rotary Tiller Cultivator Gearbox for Agricultural

ITEM EP-9.311 Rotary Tiller Gearbox
Ratio 1:3
Teeth 36/12
Module  4.35
Power(HP) 50
Rated Input 540rpm
Input/Output Description 1 3/8 Z6 Optic axis/Optic axis
Weight(N.W) 21KG

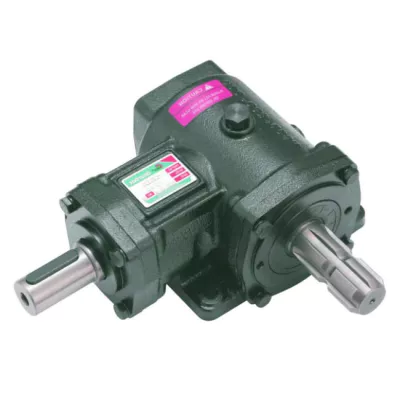

EP30

EP30 Rotary Tiller Cultivator Gearbox

ITEM EP30
Ratio 1:2.9
Teeth 32/11
Module 3.0
Power(HP) 30
Rated Input 540rpm
Input/Output Description 1 3/8 Z6 Optic axis
Weight(N.W) 13.5KG

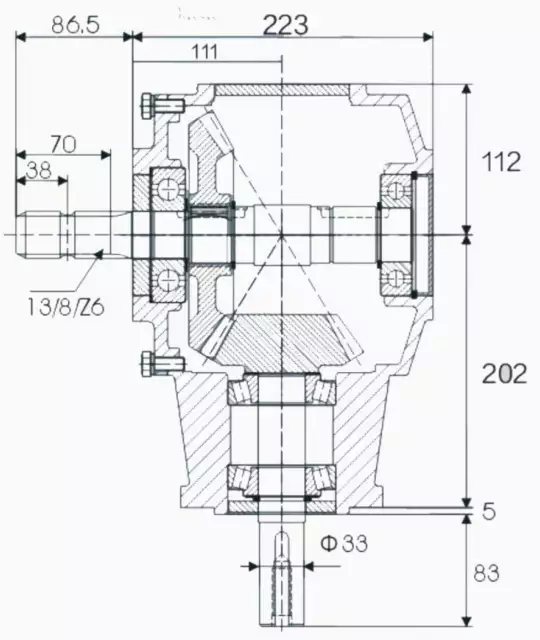

EP-75

EP-75 Rotary Tiller Cultivator Gearbox for Agricultural

ITEM EP-75
Ratio 1:3/1:2.83/1:1.65/1:1.6
Teeth 12/36 34/12 33/20 24/15
Module 6.0/5.35/5.5/7.5
Power(HP) 75/75/100/125
Rated Input 540rpm
Input/Output Description 3/8 Z6 Optic axis
Weight(N.W) 37KG

EP17

agricultural-gearbox

EP18

agricultural-gearbox

EP70

agricultural-gearbox EP 70 For Rotary Tiller

EP80

agricultural-gearbox EP 80 For Rotary Tiller

Rotary Tiller Gearboxes-Replacement of Comer Brand

TLZ-292A

Rotary Tiller Gearbox TLZ-292A Specifications

i 1.86
N1[rpm] 540
P1[kW] 47.8
M2[Nm] 1525
Shaft X 1” 3/8 Z6
Shaft Z 42*48
Input X

TLZ21J

Rotary Tiller Gearbox TLZ-21J Specifications

i 1.46
N1[rpm] 540
P1[kW] 29.4
M2[Nm] 736
Shaft X 1” 3/8 Z6
Shaft Z 36*40
Input X

TB-19J

Rotary Tiller Gearbox TB-19J Details

i 1.46
N1[rpm] 540
P1[kW] 16.9
M2[Nm] 423
Shaft X 30
Shaft Z 1” 3/8 Z6
Input Z

TB-22C

Rotary Tiller Gearbox TB-22C Specifications Rotary Tiller Gearbox TB-22C Specifications

Description
Rotary Tiller Gearboxes – Replacement of Comer Gearbox TB-22C
Application
  • Various (agricultural) applications
  • Multi-row rotary tillers
  • Hole borer
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us.
  • When using it for the first time, replace the oil after 50 operating hours.
Contains oil
Non
Capacity and oil type
3,3 GL-5 80W-90 l
Gear arrangement Increasing
23 – 24
Gear arrangement Reducing
3 – 4
Input power kW / HP Increasing
72.1 / 98 kW/HP
Input
540 r/min
Input shaft Increasing
Y
Input shaft Reducing
Z
Material housing
Cast iron GG25
Input power KW / HP Reducing
60.4 / 82 kW/HP
Output Torque DaNm
199.9 daNm
Output Torque DaNm Increasing
64 daNm
Oil
500 h
Ratio Increasing
1: 1.93
Ratio Reducing
1.93: 1
Shaft Y
1 3/8″ (6) (B)
Shaft Z
1 3/8″ (6) (D)
Poids
31.5 kg

TB-27C

Specifications of Rotary Tiller Gearbox TB-27C Specifications of Rotary Tiller Gearbox TB-27C
Description
Rotary Tiller Gearbox – Replacement of Comer Gearbox TB-27C
Application
  • Various (agricultural) applications
  • Manure Spreaders
  • Rotary Tillers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us.
  • When using it for the first time, replace the oil after 50 operating hours.
Max. input power
40.5kW
Max. output torque
693nm
Contains oil
Non
Max. oil capacity
1.1l
Max. oil change interval
500h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Poids
39.5kg
Gear arrangement
26
Ratio
1:1
Input shaft
Z
Shaft X
1 3/8″ (6) (C)
Shaft Z
1 3/8″ (6) (A)

TB-278C

Specifications of Rotary Tiller Gearbox TB-278C Specifications of Rotary Tiller Gearbox TB-278C
Specifications of Rotary Tiller Gearbox TB-278C
Description
Rotary Tiller Gearboxes – Replacement of Comer Gearbox TB-278C
Application
  • Various (agricultural) applications
  • Mowers
  • Multi-row rotary tillers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us.
  • When using it for the first time, replace the oil after 50 operating hours.
Max. output torque
100.8daNm
Contains oil
Non
Max. oil capacity
1.6l
Max. oil change interval
500h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GG25
Poids
24kg
Gear arrangement Reducing
5-6
Gear ratio
1.6:1
Input shaft Reducing
Z
Input power KW / HP Reducing
36.8/50kW/HP
Ratio Increasing
1:1.6
Ratio Reducing
1.6:1
Shaft X
41,45mm hexagonal (C)
Shaft Z
1 3/8″ (6) (A)

TB-278C 1:1

Description
Rotary Harrows Gearboxes, Rotary Tillers Gearboxes – Replacement of Comer Code TB-278C 1:1
Application
  • Various (agricultural) applications
  • Mowers
  • Series mill
Consists of
  • Gearbox
  • Order oil separately
Technical information
All technical data corresponds to ISO 6335 and ISO 281
Max. input power
40.5kW
Max. output torque
695nm
Contains oil
Non
Max. oil capacity
1.6l
Oil SAE viscosity grade
80W-90
Poids
24kg
Gear arrangement
5-6
Ratio
1:1
Input shaft
Z
Shaft X
C
Shaft Z
1 3/8″ (6) (A)

T-281J

Description
Rotary Tiller Gearboxes – Replacement of Comer Code T-281J
Application
  • Various (agricultural) applications
  • Mowers
  • Multi-row rotary tillers
  • Band saws
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us
  • When using for the first time, replace the oil after 50 operating hours
Max. output torque
29.4daNm
Contains oil
Non
Max. oil capacity
0.5l
Max. oil change interval
500h
Oil SAE viscosity grade
80W-90
Housing material
Aluminium
Poids
7 kg
Gear arrangement Increasing
23-24
Gear arrangement Reducing
3 -4
Input power kW / HP Increasing
14.7/20 kW/HP
Input shaft Increasing
X
Input shaft Reducing
Z
Input power KW / HP Reducing
11.8/16kW/HP
Output Torque DaNm Increasing
17.2daNm
Ratio Increasing
1:1.46
Ratio Reducing
1.46:1
Shaft X
1 3/8″ (6)
Shaft Z
1 3/8″ (6) (E)

T-292B

Rotary Tiller Gearboxes - Replacement of Comer Gearbox T-292B

Description
Rotary Tiller Gearboxes – Replacement of Comer Gearbox T-292B (1.86:1)
Application
  • Various (agricultural) applications
  • Mowers
  • Rotary tillers
Consists of
  • Gearbox
  • Without oil
Technical information
  • If you have any questions regarding performance at different speeds, please do not hesitate to contact us.
  • When using it for the first time, replace the oil after 50 operating hours.
Contains oil
Non
Max. oil capacity
2.5 l
Max. oil change interval
500 h
Oil SAE viscosity grade
80W-90
Housing material
Cast iron GGG40
Poids
33 kg
Gear arrangement Increasing
33 – 34
Input power kW / HP Increasing
58.9 / 80 kW/HP
Input shaft Increasing
Z
Output Torque DaNm Increasing
54.2 daNm
Ratio Increasing
1: 1.86
Ratio Reducing
1.86: 1
Shaft X
1 3/8″ (6) (B)
Shaft Y
1 3/8″ (6) (B)
Shaft Z
1 3/8″ (6) (A)
