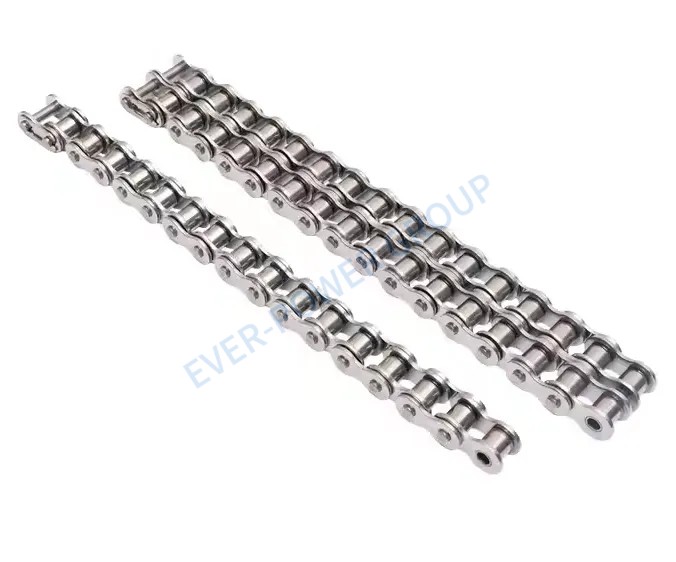

SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains

Technische Daten

The SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains have the following specifications:

  • Type: Heavy Duty
  • Series: SS08AH-1/SS40H-1
  • Material: Stainless Steel
  • Chain Size: SS08AH-1/SS40H-1

DIN/ISO Chain. NO. ANSI

Chain.

NO.

Pitch Roller
Diameter
Width
Between
Inner plates
Pin

Diameter

Pin Length Inner
Plate
depth
Plate
Thick
Ness
Transverse
Pitch
Tensile
Strength
Gewicht
Per
Meter
P dl
max
bl
min
d2
max
L
max
Lc
max
h2
max
T
max
Pt Q
min
q.
mm mm mm mm mm mm mm mm mm kN Kg/m
SS08AH-1 SS40H-1 12.7 7.95 7.85 3.96 18.8 19.9 12 2 _ 9.87 0.82
SS10AH-1 SS50H-1 15.875 10.16 9.4 5.08 22.1 23.4 15.09 2.4 _ 15.54 1.25
SS12AH-1 SS60H-1 19.05 11.91 12.57 5.94 29.2 31 18 3.2 _ 22.26 1.87
SS16AH-1 SS80H-1 25.4 15.88 15.75 7.92 36.2 37.7 24 4 _ 39.69 3.1
SS20AH-1 SS100H-1 31.75 19.05 18.9 9.53 43.6 46.9 30 4.8 _ 61.95 4.52
SS24AH-1 SS120H-1 38.1 22.23 25.22 11.1 53.5 57.5 35.7 5.6 _ 88.9 6.6
SS28AH-1 SS140H-1 44.45 25.4 25.22 12.7 57.6 62.2 41 6.4 _ 120.68 8.3
SS32AH-1 SS160H-1 50.8 28.58 31.55 14.27 68.2 73 47.8 7.2 _ 158.76 10.3
SS36AH-1 SS180H-1 57.15 35.71 35.48 17.46 75.9 81.6 53.6 8 _ 196.7 14.83
SS40AH-1 SS200H-1 63.5 39.68 37.85 19.85 86.6 93.5 60 9.5 _ 247.66 19.16
SS48AH-1 SS240H-1 76.2 47.63 47.35 23.81 109.61 115.9 72.3 12.7 _ 357.21 30.4
SS12AH-2 SS60H-2 19.05 11.91 12.57 5.94 55.3 57.1 18 3.2 26.11 44.52 3.71
SS16AH-2 SS80H-2 25.4 15.88 15.75 7.92 68.8 70.3 24 4 32.59 79.38 6.15
SS20AH-2 SS100H-2 31.75 19.05 18.9 9.53 82.7 86 30 4.8 39.09 123.9 9.03
SS24AH-2 SS120H-2 38.1 22.23 25.22 11.1 102.4 106.4 35.7 5.6 48.87 177.8 13.13
SS28AH-2 SS140H-2 44.45 25.4 25.22 12.7 109.8 114.4 41 6.4 52.2 241.36 16.6
SS32AH-2 SS160H-2 50.8 28.58 31.55 14.27 130.1 134.9 47.8 7.2 61.9 317.52 20.2
SS40AH-2 SS200H-2 63.5 39.68 37.85 19.85 164.9 171.8 60 9.5 78.31 495.32 38.11
SS12AH-3 SS60H-3 19.05 11.91 12.57 5.94 81.4 83.2 18 3.2 26.11 66.78 5.54
SS16AH-3 SS80H-3 25.4 15.88 15.75 7.92 101.4 102.9 24 4 32.59 119.07 9.42
SS20AH-3 SS100H-3 31.75 19.05 18.9 9.53 121.8 125.1 30 4.8 39.09 185.85 12.96
SS24AH-3 SS120H-3 38.1 22.23 25.22 11.1 151.2 155.2 35.7 5.6 48.87 266.7 19.64
SS28AH-3 SS140H-3 44.45 25.4 25.22 12.7 162 166.6 41 6.4 52.2 362.04 24.9
SS32AH-3 SS160H-3 50.8 28.58 31.55 14.27 192 196.8 47.8 7.2 61.9 476.28 30.1
SS40AH-3 SS200H-3 63.5 39.68 37.85 19.85 243.2 250.1 60 9.5 78.31 742.98 57.06

Einführung

The SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains are designed to meet the requirements of heavy-duty applications that operate in harsh environments. These chains are made of high-quality stainless steel, which makes them resistant to corrosion, heat, and wear.

Features

  • High Strength: The SS08AH-1/SS40H-1 chains are designed to withstand heavy loads and provide reliable performance in tough operating conditions.
  • Korrosionsbeständigkeit: The chains are made of stainless steel, which makes them highly resistant to corrosion, even in harsh environments.
  • Heat Resistance: These chains can operate at high temperatures without losing their strength or performance.
  • Wear Resistance: The SS08AH-1/SS40H-1 chains are designed to provide long-lasting performance, even in applications that involve repeated and heavy use.
  • Easy to Install: These chains are easy to install, which saves time and reduces the risk of errors during installation.

Applications

The SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains are used in a variety of applications, including:

  • Food Processing: These chains are ideal for use in food processing applications because they are resistant to corrosion and can withstand high temperatures.
  • Packaging: The SS08AH-1/SS40H-1 chains are commonly used in packaging machinery because they are reliable and can handle heavy loads.
  • Printing: These chains are also used in printing applications because they can withstand high speeds and provide reliable performance.
  • Mining: The SS08AH-1/SS40H-1 chains are suitable for use in mining applications where they can withstand heavy loads and harsh environments.
  • Marine: These chains are also used in marine applications because they are resistant to corrosion and can withstand the harsh conditions of the ocean.

Technische Daten

The SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains come in a range of sizes and specifications to meet the needs of different applications. Below are some of the common specifications:

Chain Size Pitch Roller Diameter Width Between Inner Plates Pin Diameter Average Tensile Strength
SS08AH-1 12.7 mm 8.51 mm 7.75 mm 4.45 mm 31.6 kN
SS40H-1 63.5 mm 39.68 mm 38.1 mm 11.91 mm 381.4 kN

Maintenance

The SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains require regular maintenance to ensure optimal performance. Here are some maintenance tips:

  • Clean the Chains: Regularly clean the chains to remove any dirt or debris that may accumulate on them.
  • Lubricate the Chains: Apply lubricant to the chains to reduce friction and prevent corrosion.
  • Inspect the Chains: Regularly inspect the chains for signs of wear and damage. Replace any chains that are worn or damaged.
  • Store the Chains Properly: When not in use, store the chains in a dry place to prevent corrosion.

Why Choose Our Stainless Steel Roller Chains?

RP Techniek BV is the authorized sales agent of Ever-power Group in the Netherlands. We are proud to offer the SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains, which highlight our unique selling points and emphasize the quality of our products and services.

Our stainless steel roller chains are known for their exceptional durability and reliability. They are designed to withstand heavy loads and harsh environments, making them ideal for a wide range of industrial applications. With our roller chains, you can expect smooth and efficient operation, minimizing downtime and maximizing productivity.

At RP Techniek BV, we prioritize customer satisfaction and provide excellent after-sales service. Our knowledgeable team is always ready to assist you in selecting the right stainless steel roller chain for your specific needs. We ensure prompt delivery and offer competitive pricing to meet your budget requirements.

Furthermore, our strong manufacturing capabilities guarantee the highest standards of quality in every product we offer. Our stainless steel roller chains undergo rigorous testing and inspection processes to ensure their performance and longevity.

In addition to the SS08AH-1/SS40H-1 Heavy Duty Series, we also offer a wide range of other stainless steel roller chains for sale. Whether you require roller chains for light-duty or heavy-duty applications, we have the solution for you.

Manufacturer

Sprockets for Sale

When it comes to heavy-duty roller chains like SS08AH-1/SS40H-1, finding the right sprocket is crucial to keep your equipment running smoothly. At our company, we provide a wide variety of sprockets to fit your needs.

For the SS08AH-1/SS40H-1 Heavy Duty Series Stainless Steel Roller Chains, we recommend using our stainless steel roller chain sprockets. These sprockets are designed specifically for heavy-duty applications and are made from high-quality materials to ensure durability and longevity.

Our sprockets come in a range of sizes and tooth counts to fit your specific chain and application. We also offer different types of sprockets, including plate sprockets, taper-bushed sprockets, and split sprockets.

At our company, we are committed to providing our customers with high-quality products and excellent customer service. We have a team of experts who can help you find the right sprocket for your application, and we offer competitive pricing to ensure that you get the best value for your money.
