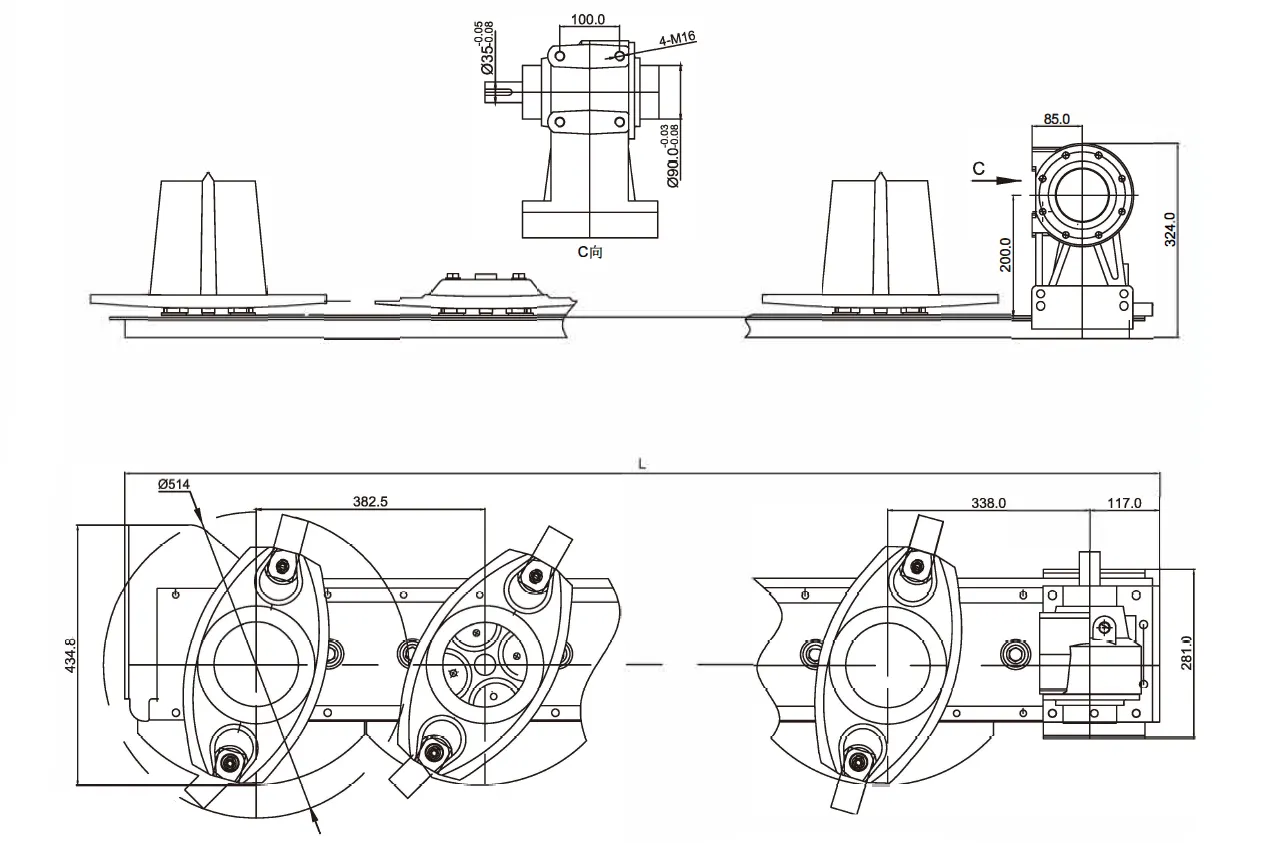

Details about 3-Point Hitch Tractor-mounted Mower Cutter Bar Gearbox EP-GC for Disc Mowers
Model number | EP-GC04 | EP-GC05 | EP-GC06 | EP-GC07 |
Weight(kg) | 148 | 168 | 197 | 226 |
MOP (kw/hp) | 21/28 | 26/35 | 31/42 | 37/50 |
Overall length (mm) | 1821.8 | 2221.4 | 2586.3 | 2981.4 |
Work breadth (m) | 1.65 | 2.1 | 2.4 | 2.8 |
cutter number (n) | 4 | 5 | 6 | 7 |
Number of blades (n) | 8 | 10 | 12 | 14 |
Rpm input (r/min) | 1000 | |||
Rpm output (r/min) | 2667 | |||
Remark: If you have any special requirements, feel free to let me know; we also accept customs. |
Disc mowers | Knife beam Type | Cutting width | Number of discs | Number of blades | Disc speed | Disc Dia. | travel speed | Matched power | PTO | weights | note |
YS1650 | KLF-GC04 | 1.65m | 4 | 2 blades/3 blades | 2900 | 19.7in.(500mm) | 4-12 km/h | 40hp-210hp | Cat2 | 500kg | normal type |
YS2100 | KLF-GC05 | 2.1m | 5 | 2 blades
|
2900 | 19.7in.(500mm) | 4-12km/h | 50hp-210hp | Cat2 | 550kg | normal type |
YS2450 | KLF-GC06 | 2.45m | 6 | 2 blades/3 blades | 2900 | 19.7in.(500mm) | 4-12km/h | 70hp-210hp | Cat2 | 590kg | Normal/Enhanced |
YS2860 | KLF-GC07 | 2.86m | 7 | 2 blades | 2900 | 19.7in.(500mm) | 4-12km/h | 90hp-210hp | Cat2 | 629kg | Normal/Enhanced |
YS3200 | KLF-GC08 | 3.20m | 8 | 2 blades/3 blades | 2900 | 19.7in.(500mm) | 4-12km/h | 100hp-210hp | Cat2 | 707kg | Enhanced Type |
Einführung
Discover the innovative 3-Point Hitch Tractor-mounted Mower Cutter Bar Gearbox EP-GC for Disc Mowers, designed to revolutionize your mowing experience. With its cutting-edge features and exceptional performance, this gearbox is the perfect solution for all your mowing needs.
Durable Construction
Our gearbox is built to withstand the toughest conditions, thanks to its high-quality materials and robust construction. The reinforced steel frame provides maximum strength and durability, ensuring long-lasting performance and reliability.
Efficient Cutting
Equipped with advanced cutting technology, this mower cutter bar gearbox delivers precise and efficient cutting results. The specially designed gear system allows for smooth operation and optimal power transfer, ensuring a clean and uniform cut every time.
Enhanced Maneuverability
Experience unmatched maneuverability with the 3-Point Hitch Tractor-mounted Mower Cutter Bar Gearbox EP-GC. Its compact design and adjustable cutting height make it easy to navigate around obstacles and achieve the desired mowing results with ease.
Easy Maintenance
Maintaining your mower cutter bar gearbox has never been easier. The EP-GC features a user-friendly design that allows for quick and hassle-free maintenance. From changing blades to lubricating the gear system, you can keep your gearbox in top condition effortlessly.
Wide Compatibility
Our 3-Point Hitch Tractor-mounted Mower Cutter Bar Gearbox EP-GC is compatible with a range of disc mowers, making it a versatile choice for various agricultural applications. Whether you're mowing a small field or a vast pasture, this gearbox will deliver exceptional performance.
Why Choose Our Agricultural Gearboxes?
RP Techniek BV, as the Dutch sales agent of Ever-power Group, provides high-quality agricultural gearboxes that are unmatched in the industry. Our 3-Point Hitch Tractor-mounted Mower Cutter Bar Gearbox EP-GC for Disc Mowers is a prime example of our unique selling points.
When it comes to product quality, we never compromise. Our gearboxes are built to withstand the toughest conditions, ensuring durability and reliability. We understand the importance of seamless performance in the field, and our gearboxes deliver just that.
Another advantage of choosing our agricultural gearboxes is our commitment to exceptional customer service. We prioritize customer satisfaction and strive to exceed expectations. Our dedicated team is always ready to assist you with any inquiries or technical support you may need.
At RP Techniek BV, we take pride in our strong manufacturing capabilities. Our state-of-the-art facilities and skilled technicians ensure that each gearbox meets the highest standards of precision and functionality. Rest assured, when you choose our gearboxes, you are choosing quality craftsmanship.
In addition to agricultural gearboxes, we offer a wide range of other farm machinery parts and transmission components. From tractors to harvesters, we have got you covered. Explore our extensive inventory to find the perfect fit for your agricultural needs.

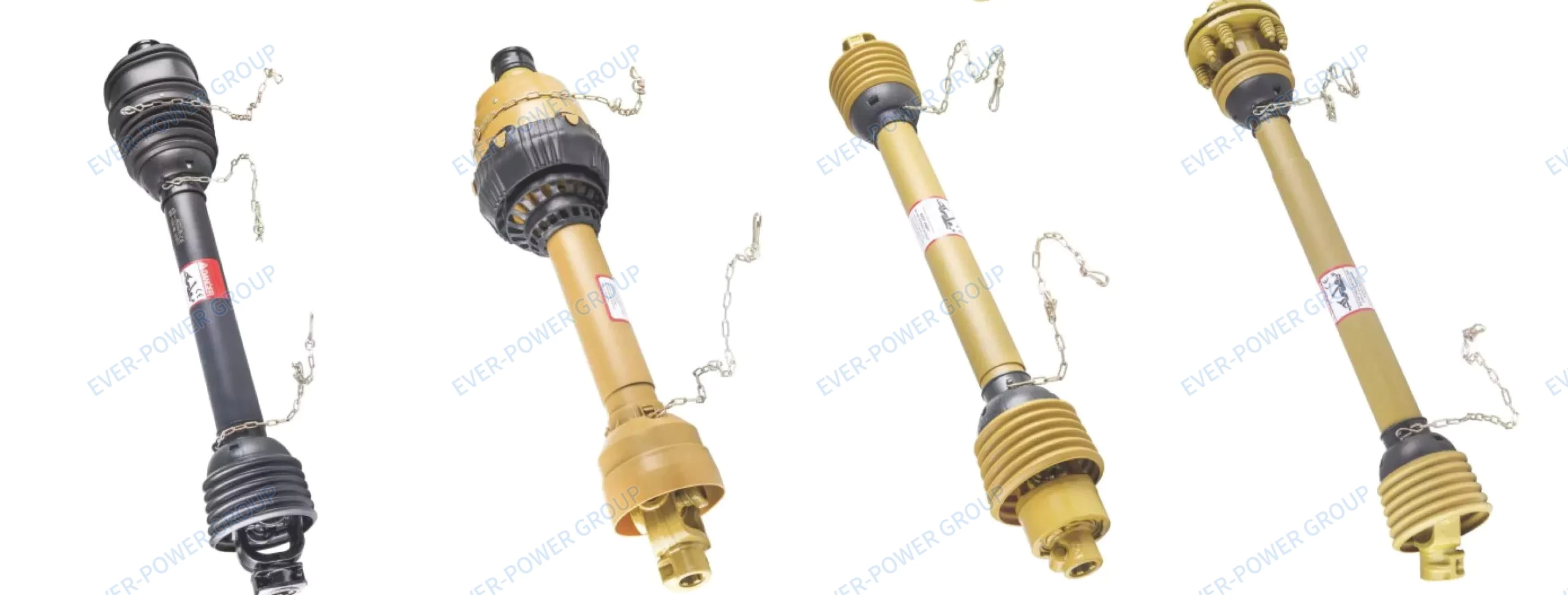

PTO Shafts for Agricultural Gearboxes
The PTO shaft is an essential component of agricultural gearboxes, which are used to transmit power from a tractor to a variety of agricultural implements, including mowers, cutters, and disc mowers. The gearbox, often attached to a 3-Point Hitch Tractor-mounted Mower Cutter Bar, is responsible for changing the direction of the power transferred from the tractor's engine to the implement. The PTO shaft is then used to transfer this power from the gearbox to the implement.
At our company, we offer a range of PTO shafts for agricultural gearboxes that are designed to meet the demands of today's modern farming industry. Our PTO shafts are made from high-quality materials and are designed to provide reliable and efficient power transfer between the tractor and the implement. We offer a wide range of sizes and configurations to ensure compatibility with a variety of agricultural gearboxes and implements.
Whether you are in need of a replacement PTO shaft or are looking to upgrade your existing equipment, our team of experts can help you find the right solution for your needs. Contact us today to learn more about our PTO shafts for agricultural gearboxes.
Weitere Informationen
Editor | Zqq |
---|
